This is a build package where all parts are new and included. No cores necessary. 1800hp capable for race use. Can be built as a 3.0, 3.2 or 3.4 liter.
Short Block
Labor:
Check Deck Height
Hot Tank/Clean
Paint Block, Iron
Resurface Block, Inline
Resize Cylinder w/ Torque Plate
Resize Line Bore
Balance Crank
Assemble Short Block
Parts:
Dart Block, 1/2" Head Studs
Custom CP Heavy Duty Pistons 86mm 9:1 CR
BC ProH625+ Connecting Rods
BC 86mm/90mm/94mm Billet Crank Shaft
ACL Race Bearing Set, Calico Coated
Head, Stage 3
Labor:
Remove/Drill/Tap/Replace Oil Port Plugs
Plug EGR port
Stage 3 CNC Port and Combustion Chamber
Remove, Reinstall, Ream Valve Guides
Valve Job, Race
Set Valve Lash
Plug intake side water pipe
Machine Rear Water Pipe -10an ORB
Machined for 1/2" Head Studs
Resurface Head
Assemble Head
Parts:
New OEM Cylinder Head
Ferrea Intake/Exhaust Valves, +1mm
Ferrea Bronze Valve Guides
Ferrea High Boost Dual Valve Spring Kit, 125lbs
Kelford DLC Coated Shimless Buckets
Ferrea Valve Locks
Ferrea Valve Seals
Kelford Cams, T202-F 282/286
Long Block
Labor:
Long Block Assemble
Parts:
Apexi Head Gasket

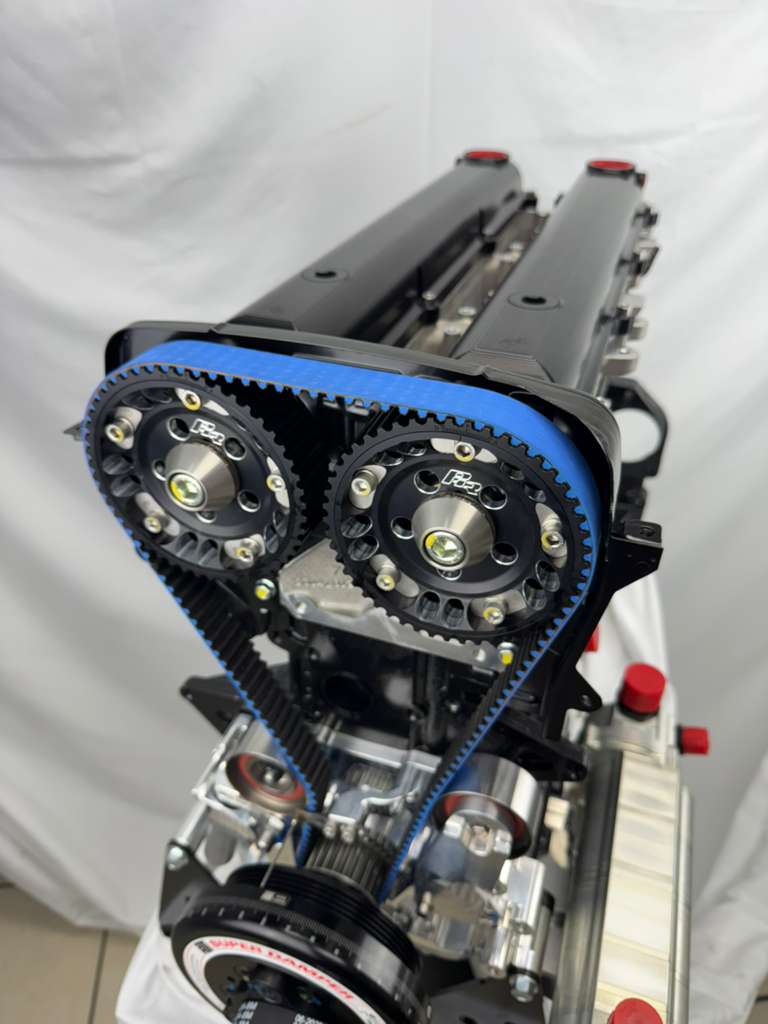

PHR Adjustable Cam Gears and bolts

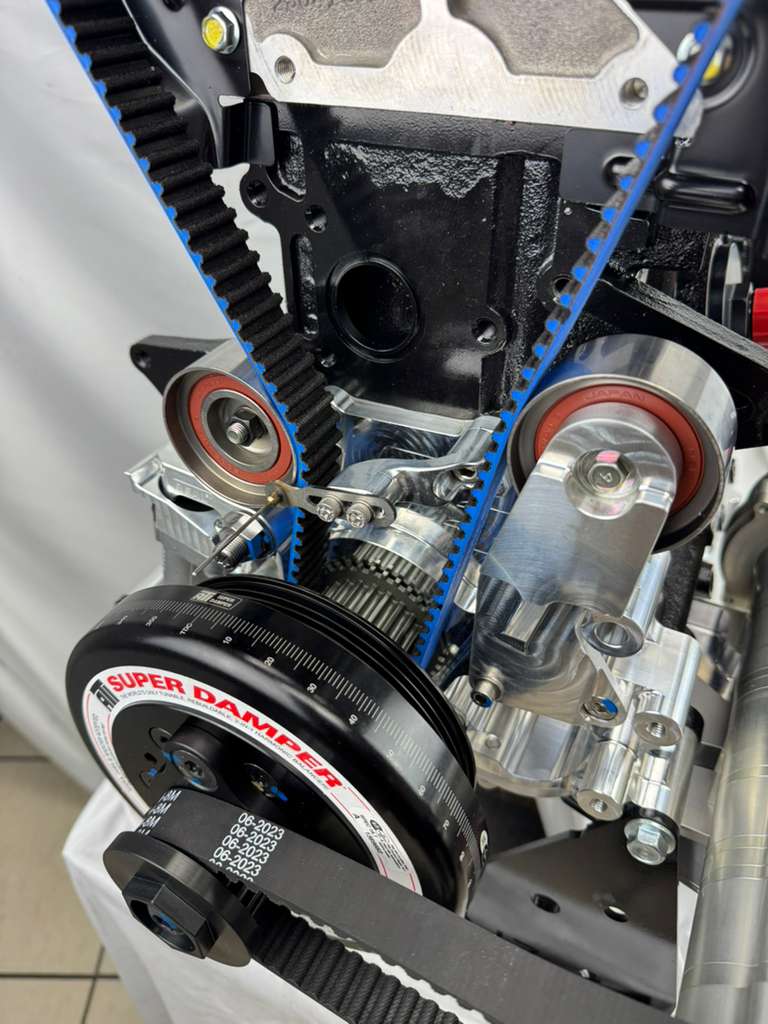

ATI Super Damper
ARP Damper Bolt
Gates Racing Timing Belt
CA625+ 1/2" Head Studs
RSP Billet Tensioner Bracket
Mazworx 2JZ Engine Bolt Kit
Mazworx Engine Shipping Bracket Kit, 2JZ
New OEM Parts & Seals
No Water Pump
PHR Billet Front Cover w/ Extreme Tensioner Bolt
PHR Timing Pointer
PHR Belt Pulley
36-2 Crank Trigger/Sprocket

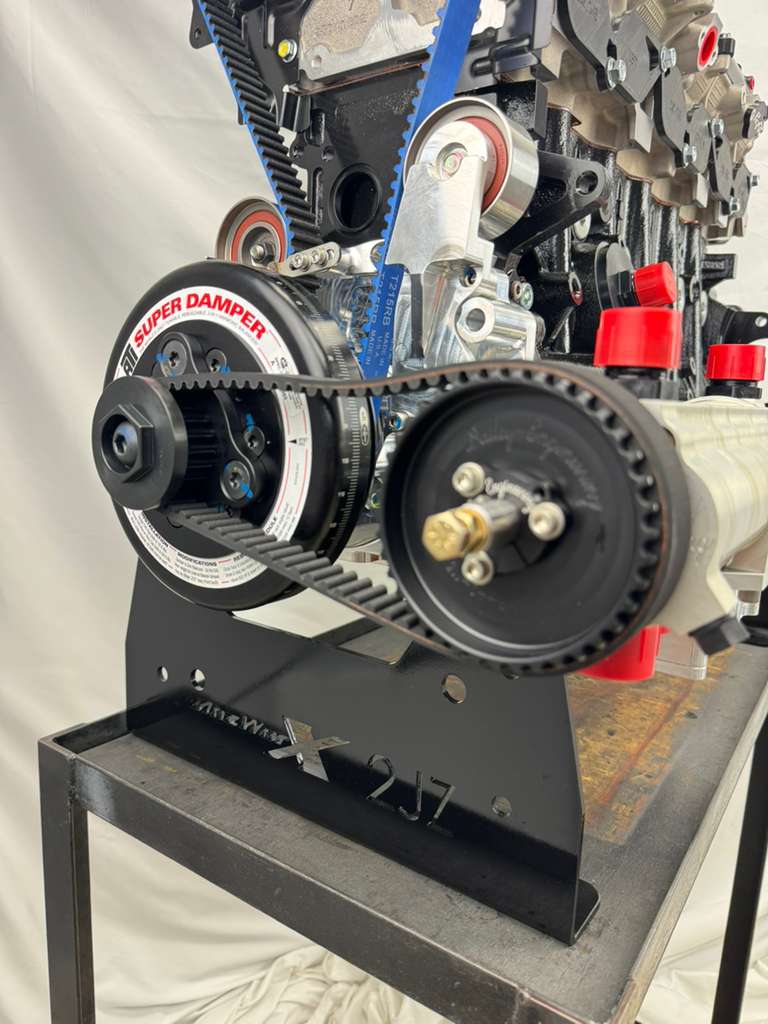

PHR/Dailey Engineering 5 Stage Dry Sump Kit

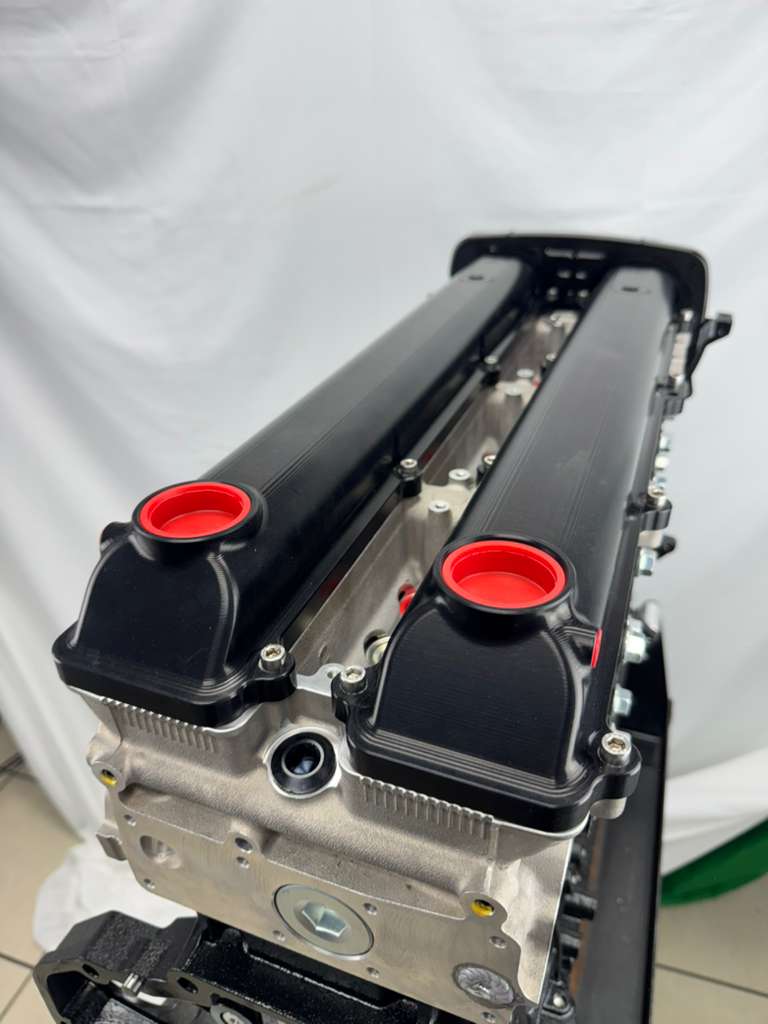

PHR Billet Valve Covers
